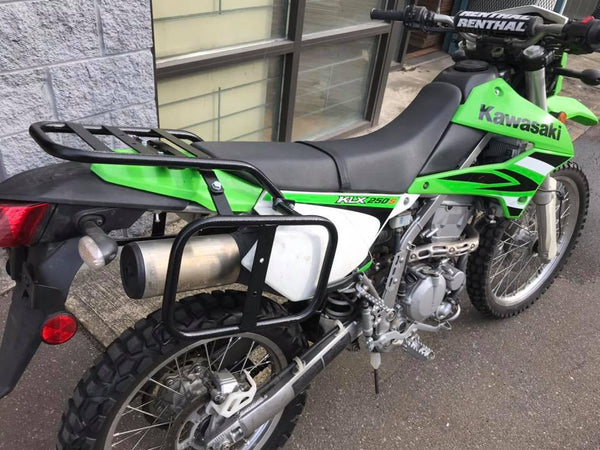

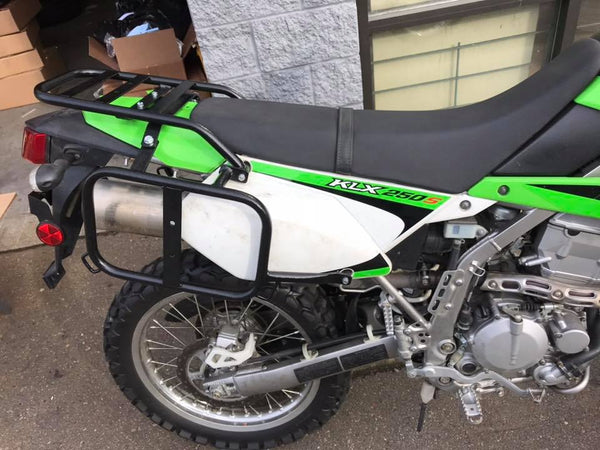

Our heavy duty side racks will work great with any soft saddlebags or rotopax gas cans.The factory tool pouch can be reinstalled if not using our rear rack.Rear rack sold separately.This rack is for use with soft luggage only ,not to mount hard cases like aluminum panniers or pelican cases. dose not fit 2024 model
Rear rack sold separately
Powder coated
Comes with bolts
Easy bolt on installation
Lifetime warranty
Installation
Remove the 4 bolts that hold the tool pouch
Remove the 2 seat bolts
Remove the 2 side panel bolts
Install the 2 short spacers in the rear fender
Bolt on the crossbar with the 2 x50 mm bolts
Hold up the right side and bolt on the side rack under the cross bracket not on top otherwise will not fit ,use the m8x25mm bolt and nut with washers
Use the 40 mm spacers at the seat bolt and at the lower mounting point use the m6x65mm bolts ,you do not need the top spacers if you install our rear rack.
Left side mount it under the cross bracket use the m8x25mm bolt and nut with washers
Use the 40 mm spacer at the seat bolt and use the 25mm spacer at the lower mounting point.Use m6x65mm bolt and m6x50mm bolt
You can reinstall the tool pouch if the rear rack is not being installed.
Tighten all bolts
